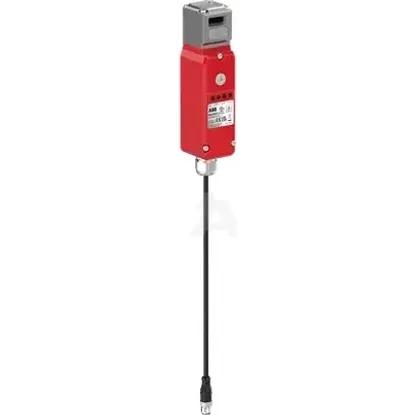

2TLA050007R2602 | MKEY9RFQC NO KEY PLASTIC M12
Code: 2004686
ManufacturerABB
Catalog number2TLA050007R2602
TypePosition switch with guard locking
EAN code7350024486841
Details
- •Sensors
- •Position switch with guard locking
- •1 KOM
- •ABB
Technical specifications
Rated operation current Ie at DC-13, 230 V-A
Material housingPlastic
Number of safety auxiliary contacts-
Type of interface for safety communicationOther
Suitable for safety functionsYes
Type of switching contactSlow-action switch
Type of electric connectionOther
With status indicationYes
Coating housingUncoated
Construction type housingSpecial construction
Rated control supply voltage Us magnet drive at AC 50 Hz- - -V
Type of interfaceOther
Rated control supply voltage Us magnet drive at DC24 - 24V
Rated operation current Ie at AC-15, 125 V-A
Rated control supply voltage Us magnet drive at AC 60 Hz- - -V
Rated operation current Ie at DC-13, 125 V-A
Width sensor46mm
Rated operation current Ie at DC-13, 24 V-A
With escape releaseNo
Length of sensor51mm
Rated operation current Ie at AC-15, 24 V-A
Number of contacts as normally open contact0
Degree of protection (NEMA)1
Height of sensor176mm
Number of contacts as normally closed contact0
Number of contacts as change-over contact-
With auxiliary releaseYes
Ambient temperature during operating-25 - 40°C
Rated operation current Ie at AC-15, 230 V-A
Degree of protection (IP)IP67
Guard locking force2000N
Type of guard lockingOperating current principle
