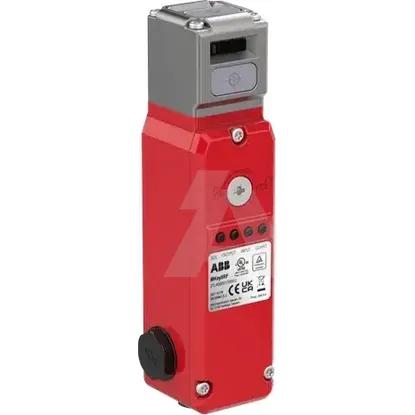

2TLA050011R0612 | MKEY8RF NO KEY DIE-CAST M20
Code: 2004687
ManufacturerABB
Catalog number2TLA050011R0612
TypePosition switch with guard locking
EAN code7350024486858
Details
- •Sensors
- •Position switch with guard locking
- •1 KOM
- •ABB
Technical specifications
Rated operation current Ie at DC-13, 230 V-A
Material housingMetal
Suitable for safety functionsYes
Type of interface for safety communicationOther
With status indicationYes
Type of switching contactSlow-action switch
Coating housingPowder coating
Type of electric connectionOther
Construction type housingSpecial construction
Number of safety auxiliary contacts-
Type of interfaceOther
Rated control supply voltage Us magnet drive at AC 60 Hz- - -V
Rated control supply voltage Us magnet drive at AC 50 Hz- - -V
Rated operation current Ie at AC-15, 125 V-A
Rated control supply voltage Us magnet drive at DC24 - 24V
With escape releaseNo
Number of contacts as change-over contact-
Length of sensor48mm
Number of contacts as normally open contact0
Ambient temperature during operating-25 - 40°C
Rated operation current Ie at DC-13, 24 V-A
Rated operation current Ie at AC-15, 24 V-A
Width sensor46mm
Rated operation current Ie at DC-13, 125 V-A
Height of sensor190mm
Number of contacts as normally closed contact0
Degree of protection (NEMA)1
With auxiliary releaseYes
Rated operation current Ie at AC-15, 230 V-A
Degree of protection (IP)IP67
Guard locking force3000N
Type of guard lockingOperating current principle
