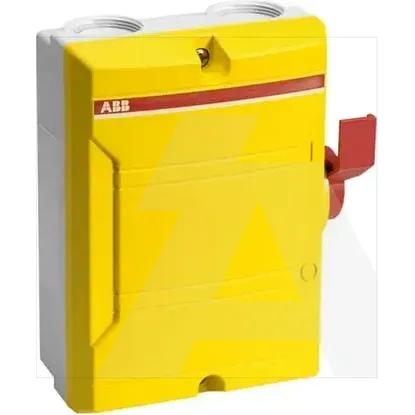

2CMA142444R1000 | BW425YTPN
Code: 2004748
ManufacturerABB
Catalog number2CMA142444R1000
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code7392696424448
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Height130mm
Number of auxiliary contacts as normally open contact0
Depth60mm
Rated operation power at AC-3, 400 V-kW
Width111mm
Number of auxiliary contacts as normally closed contact0
Width in number of modular spacings-
Conditioned rated short-circuit current Iq-kA
Colour control elementRed
Rated operating voltage690 - 690V
Suitable for front mounting 4-holeNo
Rated short-time withstand current lcw-kA
Type of control elementRocker lever
Number of switches1
Version as emergency stop installationNo
Suitable for floor mountingNo
Degree of protection (IP), front sideIP65
Motor drive integratedNo
Suitable for front mounting centreNo
Suitable for intermediate mountingNo
Version as main switchYes
Version as maintenance-/service switchYes
InterlockableYes
Suitable for distribution board installationYes
Version as safety switchNo
Number of auxiliary contacts as change-over contact0
Rated operation power at AC-23, 400 V7.5kW
Voltage release optionalNo
Motor drive optionalNo
Device constructionComplete device in housing
With pre-assembled cablingNo
Rated permanent current at AC-21, 400 V-A
Rated permanent current at AC-23, 400 V16A
Degree of protection (NEMA)Other
Switching power at 400 V7.5kW
Version as reversing switchNo
Rated permanent current Iu25A
Number of poles4
Max. rated operation voltage Ue AC690V
