Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •HAGER
Technical specifications
Width18mm
Number of auxiliary contacts as normally open contact0
Height77mm
Rated operating voltage690 - 1000V
Rated permanent current Iu32A
Conditioned rated short-circuit current Iq30kA
Number of poles1
Depth75mm
Degree of protection (IP), front sideIP20
Number of switches1
Number of auxiliary contacts as change-over contact0
Width in number of modular spacings1
Number of auxiliary contacts as normally closed contact0
Version as emergency stop installationNo
Version as safety switchNo
Type of control elementLong turning handle
Version as main switchNo
Colour control elementGrey
Motor drive integratedNo
Version as maintenance-/service switchNo
Type of electrical connection of main circuitCable clamp
Rated short-time withstand current lcw30kA
Motor drive optionalNo
Suitable for intermediate mountingNo
Suitable for floor mountingNo
Suitable for front mounting centreNo
Suitable for front mounting 4-holeNo
Max. rated operation voltage Ue AC1000V
Suitable for distribution board installationYes
With pre-assembled cablingNo
Version as reversing switchNo
InterlockableNo
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

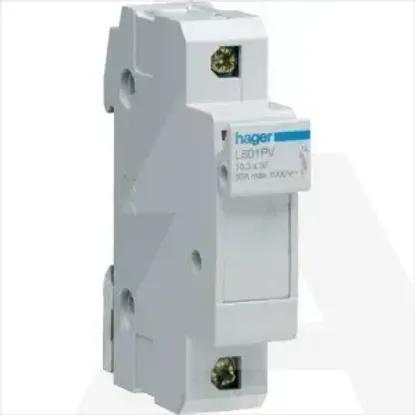

L501PV
