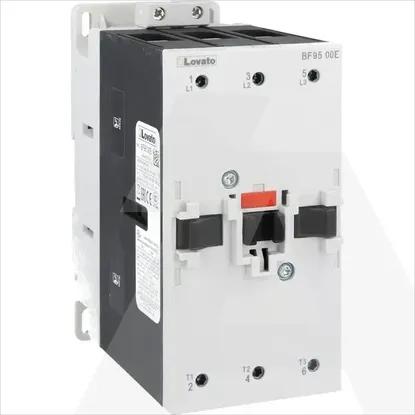

BF9500E230
Code: 2007278
ManufacturerLovato
Catalog numberBF9500E230
TypePower contactor, AC switching
Category-
EAN code8013975241752
Details
- •Low-voltage control systems
- •Power contactor, AC switching
- •1 KOM
- •LOVATO
Technical specifications
Modular versionNo
Rated operation current Ie at AC-4, 400 V45A
Type of electrical connection of main circuitFrame clamp
Rated control supply voltage Us at AC 60HZ100 - 250V
Voltage type for actuatingAC/DC
Rated control supply voltage Us at DC100 - 250V
Number of normally open contacts as main contact3
Number of normally closed contacts as main contact0
Rated operation current Ie at AC-1, 400 V140A
Rated operation power at AC-3, 400 V55kW
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Rated operation current Ie at AC-3, 400 V95A
Rated control supply voltage Us at AC 50HZ100 - 250V
