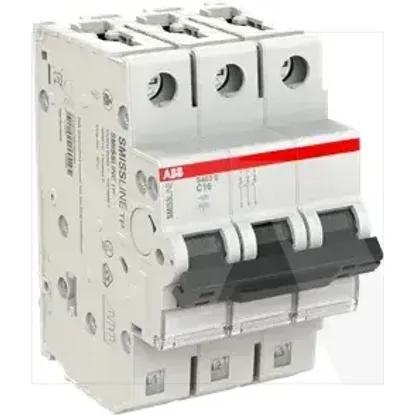

2CCS553001R0164 | S403E-C16
Code: 2007580
ManufacturerABB
Catalog number2CCS553001R0164
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code7612270102686
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated insulation voltage Ui440V
Frequency50 - 60Hz
Built-in depth82mm
Width in number of modular spacings3
Degree of protection (IP)IP20
Explosion-proofNo
Ambient temperature during operating-25 - 60°C
Power loss5.7W
Additional equipment possibleYes
Current limiting class3
Concurrently switching neutral conductorNo
Connectable conductor cross section solid-core0.75 - 35mm²
Flush-mounted installationNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Connectable conductor cross section multi-wired0.75 - 25mm²
Pollution degree4
Over voltage category3
Rated voltage400V
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Rated impulse withstand voltage Uimp4kV
Number of protected poles3
Voltage typeAC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Rated current16A
Release characteristicC
Number of poles (total)3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
