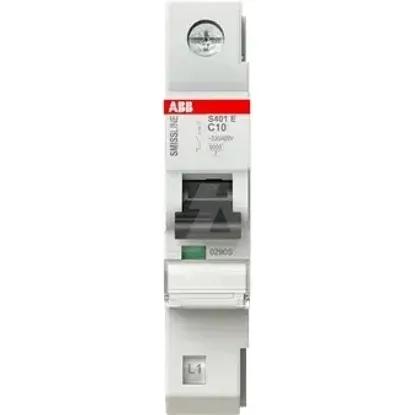

2CCS551001R0104 | S401E-C10
Code: 2007581
ManufacturerABB
Catalog number2CCS551001R0104
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code7612270101122
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Current limiting class3
Pollution degree4
Voltage typeOther
Width in number of modular spacings1
Over voltage category3
Rated voltage230V
Frequency50 - 60Hz
Rated insulation voltage Ui440V
Built-in depth82mm
Number of protected poles1
Power loss1.2W
Connectable conductor cross section solid-core0.75 - 35mm²
Explosion-proofNo
Concurrently switching neutral conductorNo
Degree of protection (IP)IP20
Connectable conductor cross section multi-wired0.75 - 25mm²
Ambient temperature during operating-25 - 60°C
Flush-mounted installationNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Rated impulse withstand voltage Uimp4kV
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Rated current10A
Release characteristicC
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
