Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Voltage typeOther
Number of protected poles1
Degree of protection (IP)IP20
Pollution degree4
Rated insulation voltage Ui440V
Rated current6A
Built-in depth82mm
Current limiting class3
Width in number of modular spacings1
Over voltage category3
Rated voltage230V
Explosion-proofNo
Release characteristicB
Frequency50 - 60Hz
Power loss1.8W
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Connectable conductor cross section multi-wired0.75 - 25mm²
Ambient temperature during operating-25 - 60°C
Number of poles (total)1
Rated impulse withstand voltage Uimp4kV
Flush-mounted installationNo
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Connectable conductor cross section solid-core0.75 - 35mm²
Concurrently switching neutral conductorNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

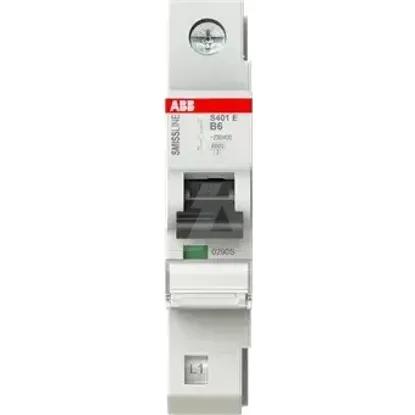

2CCS551001R0065 | S401E-B6
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Voltage type
Other
Number of protected poles
1
Degree of protection (IP)
IP20
Pollution degree
4
Rated insulation voltage Ui
440V
Rated current
6A
Built-in depth
82mm
Current limiting class
3
Width in number of modular spacings
1
Over voltage category
3
Rated voltage
230V
Explosion-proof
Release characteristic
B
Frequency
50 .. 60Hz
Power loss
1.8W
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
6kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
6kA
Connectable conductor cross section multi-wired
0.75 .. 25mm²
Ambient temperature during operating
-25 .. 60°C
Number of poles (total)
1
Rated impulse withstand voltage Uimp
4kV
Flush-mounted installation
Additional equipment possible
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
-kA
Connectable conductor cross section solid-core
0.75 .. 35mm²
Concurrently switching neutral conductor
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
-kA
