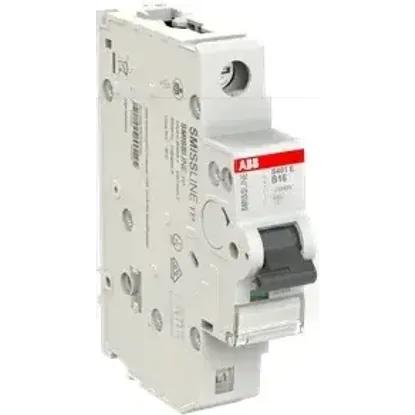

2CCS551001R0165 | S401E-B16
Code: 2007583
ManufacturerABB
Catalog number2CCS551001R0165
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code7612270101030
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Current limiting class3
Built-in depth82mm
Rated insulation voltage Ui440V
Frequency50 - 60Hz
Width in number of modular spacings1
Pollution degree4
Over voltage category3
Power loss1.9W
Concurrently switching neutral conductorNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Ambient temperature during operating-25 - 60°C
Flush-mounted installationNo
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Connectable conductor cross section solid-core0.75 - 35mm²
Additional equipment possibleYes
Connectable conductor cross section multi-wired0.75 - 25mm²
Explosion-proofNo
Degree of protection (IP)IP20
Number of protected poles1
Voltage typeAC
Rated voltage240V
Rated current16A
Release characteristicB
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
