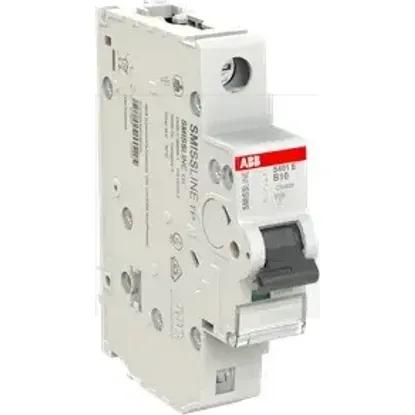

2CCS551001R0105 | S401E-B10
Code: 2007584
ManufacturerABB
Catalog number2CCS551001R0105
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code7612270101016
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Built-in depth82mm
Voltage typeOther
Over voltage category3
Current limiting class3
Pollution degree4
Rated insulation voltage Ui440V
Rated voltage230V
Frequency50 - 60Hz
Explosion-proofNo
Width in number of modular spacings1
Concurrently switching neutral conductorNo
Connectable conductor cross section solid-core0.75 - 35mm²
Power loss1.2W
Degree of protection (IP)IP20
Connectable conductor cross section multi-wired0.75 - 25mm²
Ambient temperature during operating-25 - 60°C
Additional equipment possibleYes
Flush-mounted installationNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Rated impulse withstand voltage Uimp4kV
Number of protected poles1
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Rated current10A
Release characteristicB
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
