Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Current limiting class3
Explosion-proofNo
Built-in depth82mm
Over voltage category3
Connectable conductor cross section solid-core0.75 - 35mm²
Frequency50 - 60Hz
Rated insulation voltage Ui440V
Width in number of modular spacings1
Release characteristicC
Voltage typeOther
Power loss2W
Concurrently switching neutral conductorNo
Pollution degree4
Rated voltage230V
Number of protected poles1
Rated current25A
Degree of protection (IP)IP20
Additional equipment possibleYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Number of poles (total)1
Connectable conductor cross section multi-wired0.75 - 25mm²
Flush-mounted installationNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Ambient temperature during operating-25 - 60°C
Rated impulse withstand voltage Uimp4kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

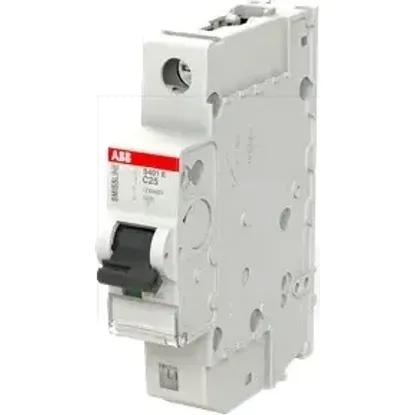

2CCS551001R0254 | S401E-C25
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Current limiting class
3
Explosion-proof
Built-in depth
82mm
Over voltage category
3
Connectable conductor cross section solid-core
0.75 .. 35mm²
Frequency
50 .. 60Hz
Rated insulation voltage Ui
440V
Width in number of modular spacings
1
Release characteristic
C
Voltage type
Other
Power loss
2W
Concurrently switching neutral conductor
Pollution degree
4
Rated voltage
230V
Number of protected poles
1
Rated current
25A
Degree of protection (IP)
IP20
Additional equipment possible
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
6kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
6kA
Number of poles (total)
1
Connectable conductor cross section multi-wired
0.75 .. 25mm²
Flush-mounted installation
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
-kA
Ambient temperature during operating
-25 .. 60°C
Rated impulse withstand voltage Uimp
4kV
