Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Built-in depth82mm
Frequency50 - 60Hz
Voltage typeOther
Rated voltage400V
Rated current32A
Concurrently switching neutral conductorNo
Pollution degree4
Connectable conductor cross section solid-core0.75 - 35mm²
Width in number of modular spacings3
Over voltage category3
Connectable conductor cross section multi-wired0.75 - 25mm²
Rated insulation voltage Ui440V
Explosion-proofNo
Power loss8.1W
Current limiting class3
Release characteristicC
Degree of protection (IP)IP20
Number of protected poles3
Ambient temperature during operating-25 - 60°C
Flush-mounted installationNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Additional equipment possibleYes
Number of poles (total)3
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

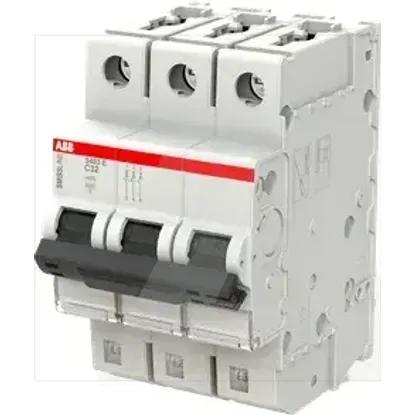

2CCS553001R0324 | S403E-C32
