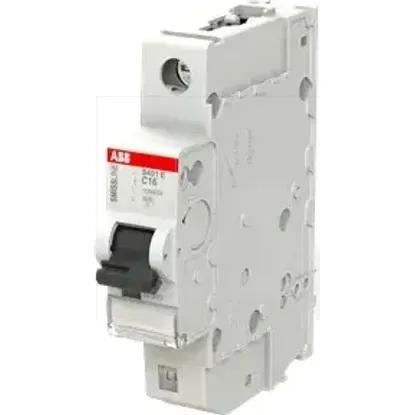

2CCS551001R0164 | S401E-C16
Code: 2007588
ManufacturerABB
Catalog number2CCS551001R0164
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code7612270101146
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Built-in depth82mm
Rated insulation voltage Ui440V
Degree of protection (IP)IP20
Explosion-proofNo
Frequency50 - 60Hz
Rated voltage230V
Power loss1.9W
Current limiting class3
Pollution degree4
Width in number of modular spacings1
Over voltage category3
Connectable conductor cross section solid-core0.75 - 35mm²
Additional equipment possibleYes
Flush-mounted installationNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Ambient temperature during operating-25 - 60°C
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Connectable conductor cross section multi-wired0.75 - 25mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Number of protected poles1
Concurrently switching neutral conductorNo
Voltage typeAC
Rated current16A
Release characteristicC
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
