Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Frequency50 - 60Hz
Rated insulation voltage Ui440V
Concurrently switching neutral conductorNo
Rated voltage400V
Release characteristicB
Degree of protection (IP)IP20
Rated current32A
Pollution degree4
Current limiting class3
Width in number of modular spacings3
Explosion-proofNo
Over voltage category3
Number of protected poles3
Power loss8.1W
Voltage typeOther
Built-in depth82mm
Connectable conductor cross section solid-core0.75 - 35mm²
Ambient temperature during operating-25 - 60°C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Rated impulse withstand voltage Uimp4kV
Connectable conductor cross section multi-wired0.75 - 25mm²
Number of poles (total)3
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Flush-mounted installationNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

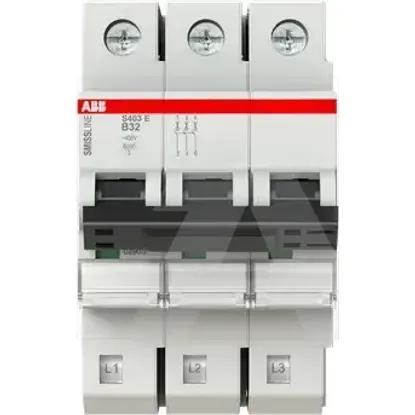

2CCS553001R0325 | S403E-B32
