Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Connectable conductor cross section solid-core0.75 - 35mm²
Concurrently switching neutral conductorNo
Explosion-proofNo
Voltage typeOther
Release characteristicB
Rated insulation voltage Ui440V
Flush-mounted installationNo
Current limiting class3
Additional equipment possibleYes
Power loss16.8W
Built-in depth82mm
Width in number of modular spacings3
Degree of protection (IP)IP20
Rated current63A
Number of protected poles3
Pollution degree4
Over voltage category3
Frequency50 - 60Hz
Rated voltage400V
Ambient temperature during operating-25 - 60°C
Connectable conductor cross section multi-wired0.75 - 25mm²
Number of poles (total)3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

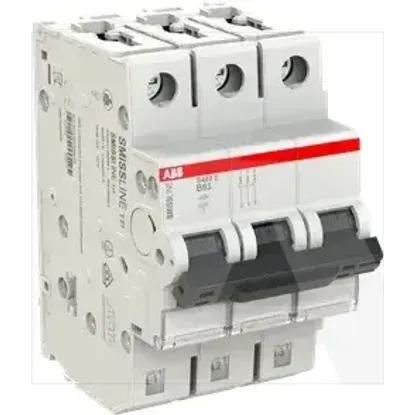

2CCS553001R0635 | S403E-B63
