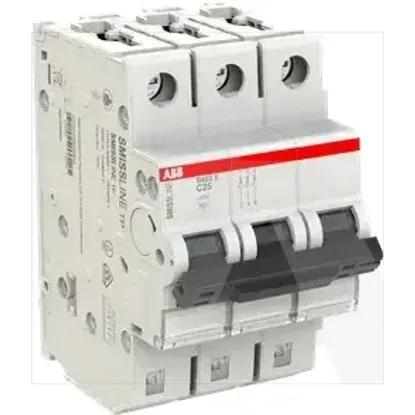

2CCS553001R0254 | S403E-C25
Code: 2007764
ManufacturerABB
Catalog number2CCS553001R0254
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code7612270102709
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Flush-mounted installationNo
Power loss6W
Rated voltage400V
Frequency50 - 60Hz
Rated insulation voltage Ui440V
Over voltage category3
Built-in depth82mm
Current limiting class3
Connectable conductor cross section solid-core0.75 - 35mm²
Concurrently switching neutral conductorNo
Degree of protection (IP)IP20
Pollution degree4
Connectable conductor cross section multi-wired0.75 - 25mm²
Additional equipment possibleYes
Explosion-proofNo
Ambient temperature during operating-25 - 60°C
Width in number of modular spacings3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Voltage typeAC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Number of protected poles3
Rated current25A
Release characteristicC
Number of poles (total)3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
