Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Voltage typeOther
Frequency50 - 60Hz
Degree of protection (IP)IP20
Ambient temperature during operating-25 - 60°C
Rated current16A
Rated voltage400V
Concurrently switching neutral conductorNo
Number of poles (total)3
Rated insulation voltage Ui440V
Number of protected poles3
Built-in depth82mm
Current limiting class3
Over voltage category3
Flush-mounted installationNo
Pollution degree4
Connectable conductor cross section multi-wired0.75 - 25mm²
Explosion-proofNo
Width in number of modular spacings3
Release characteristicB
Additional equipment possibleYes
Power loss5.7W
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Connectable conductor cross section solid-core0.75 - 35mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

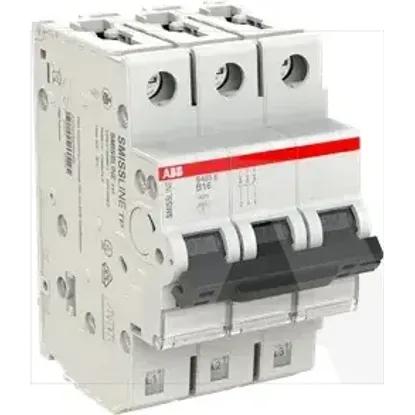

2CCS553001R0165 | S403E-B16
