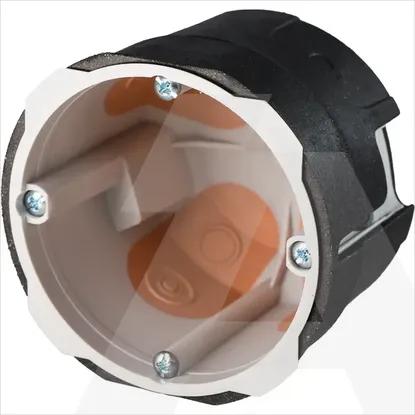

KPZ 68-60_PO | KUTIJA GIPS VATROOTPORNA d=63
Code: 2007870
Details
- •Connection devices
- •Box/housing for built-in mounting in the wall/ceiling
- •1 KOM
- •KOPOS
Technical specifications
ShapeRound
Mounting methodHollow wall
Construction typeDevice connection box (round/square)
ModelSingle
Provided with revolving ringNo
Equipped withNone
ConnectableNo
Diameter73mm
Length-mm
Internal depth-mm
Depth47 - 47mm
For number of electric fittings1
With screwsYes
Mounting switching equipmentScrewing
Width-mm
Housing feed-through by break-out openingNo
Housing feed-through by seal membraneYes
Housing feed-through by nozzleNo
Pipe lockingNo
For tube diameter20/25 mm
Suitable for cable diameter7 - 20mm
Inlet from the rearYes
Pipe locking optionalNo
Number of inlets4
Number of included spouts-
Halogen freeYes
MaterialPlastic
ColourBlack
Degree of protection (IP)IP30
Housing feed-through by step membraneNo
Circuit integrityNone
Transparent coverNo
SealableNo
With screeningNo
Luminaire hook mountingNo
Clamp position fixedNo
Air tightYes
With nail lugsNo
Max. conductor cross section4mm²
Number of poles of the clamp-
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
