Details

  • •Low-voltage industrial components
  • •Switch disconnector (low voltage)
  • •1 KOM
  • •SIEMENS

Technical specifications

Rated operation power at AC-3, 400 V8kW
Number of poles3
Suitable for front mounting 4-holeNo
Version as maintenance-/service switchYes
Number of auxiliary contacts as normally open contact1
Rated operation power at AC-23, 400 V10kW
Rated permanent current Iu25A
Number of auxiliary contacts as normally closed contact1
InterlockableYes
Version as emergency stop installationYes
Type of electrical connection of main circuitFrame clamp
Suitable for floor mountingNo
Version as main switchYes
Version as safety switchYes
Rated short-time withstand current lcw0.64kA
Number of switches1
Number of auxiliary contacts as change-over contact0
Motor drive integratedNo
Motor drive optionalNo
Suitable for intermediate mountingNo
Suitable for front mounting centreYes
Max. rated operation voltage Ue AC690V
Suitable for distribution board installationNo
Voltage release optionalNo
Device constructionBuilt-in device fixed built-in technique
Rated permanent current at AC-23, 400 V20A
Version as reversing switchNo
Rated permanent current at AC-21, 400 V25A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

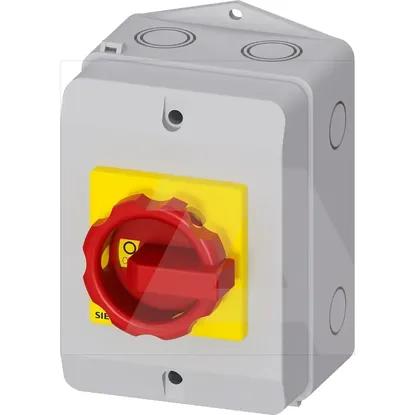

3LD2164-1GP53 | SENTRON, Switch disconnector 3LD

Main Product Image

Why Register?

  • View wholesale prices with discounts
  • Real-time stock availability
  • Access invoices and dispatch notes
  • Order history and frequently ordered items
  • Exclusive B2B offers

and much more...

Details

  • Low-voltage industrial components
  • Switch disconnector (low voltage)
  • 1 KOM
  • SIEMENS

Technical specifications

Rated operation power at AC-3, 400 V

8kW

Number of poles

3

Suitable for front mounting 4-hole

Version as maintenance-/service switch

Number of auxiliary contacts as normally open contact

1

Rated operation power at AC-23, 400 V

10kW

Rated permanent current Iu

25A

Number of auxiliary contacts as normally closed contact

1

Interlockable

Version as emergency stop installation

Type of electrical connection of main circuit

Frame clamp

Suitable for floor mounting

Version as main switch

Version as safety switch

Rated short-time withstand current lcw

0.64kA

Number of switches

1

Number of auxiliary contacts as change-over contact

0

Motor drive integrated

Motor drive optional

Suitable for intermediate mounting

Suitable for front mounting centre

Max. rated operation voltage Ue AC

690V

Suitable for distribution board installation

Voltage release optional

Device construction

Built-in device fixed built-in technique

Rated permanent current at AC-23, 400 V

20A

Version as reversing switch

Rated permanent current at AC-21, 400 V

25A
