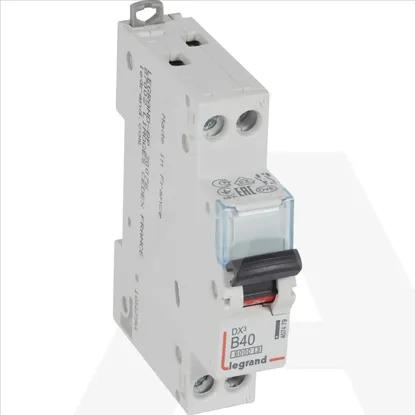

407479 | DX3 AUTOM OSIG 1P+N B40 10KA
Code: 2011943
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •LEGRAND
Technical specifications
Number of protected poles1
Release characteristicB
Voltage typeAC
Frequency50 - 60Hz
Number of poles (total)2
Suitable for flush-mounted installationYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Pollution degree2
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Rated insulation voltage Ui250V
Rated impulse withstand voltage Uimp4kV
Rated voltage230V
Current limiting class3
Rated current40A
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Concurrently switching neutral conductorYes
Over voltage category-
Additional equipment possibleYes
Built-in depth44mm
Degree of protection (IP)IP20
Connectable conductor cross section multi-wired0.75 - 10mm²
Width in number of modular spacings1
Connectable conductor cross section solid-core0.75 - 16mm²
Ambient temperature during operating-25 - 70°C
