Details
- •Cables
- •Data and communication cable (copper)
- •1 KOM
- •LEGRAND
Technical specifications
Colour outer sheathOther
Core identificationColour
UV resistantNo
Nominal cross section conductor0.128mm²
ArmouringNo
Stranding elementNo
Material core insulationPolyvinyl chloride (PVC)
Screen over strandingNone
Screen over stranding elementNone
Diameter conductor0.404mm
NVP value-%
Insulation integrity according to IEC 60331No
Longitudinal water blocking cableNo
Number of cores7
Permitted cable outer temperature during assembling/handling80 - 80°C
Conductor categoryClass 1 = solid
Permitted cable outer temperature after assembling without vibration80 - 80°C
Halogen free (according to IEC 60754-2)No
Conductor surfaceBare
Material outer sheathPolyvinyl chloride (PVC)
Oil resistant (according to IEC 60811-404)No
Number of stranding elements-
Low smoke (according to EN 61034-2)No
Low smoke (according to IEC 61034-2)No
Halogen free (according to EN 60754-1/2)Yes
Oil resistant (according to EN 60811-404)No
AWG-size26
Suitable for underground installationNo
Outer diameter approx.0.95mm
Radial water blocking cableNo
Min. permitted bending radius, moving application with forced guidance-mm
Min. permitted bending radius, moving application/free movement-mm
Min. permitted bending radius, stationary application/permanent installation-mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

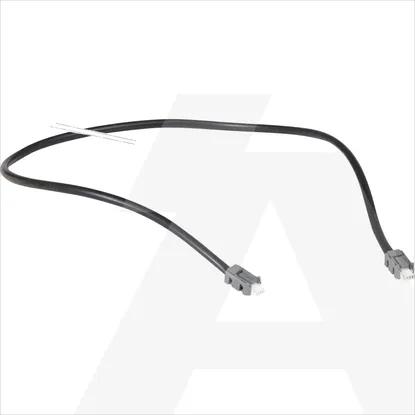

414908 | EMS CX3 10 PATCH CORDS 500MM
