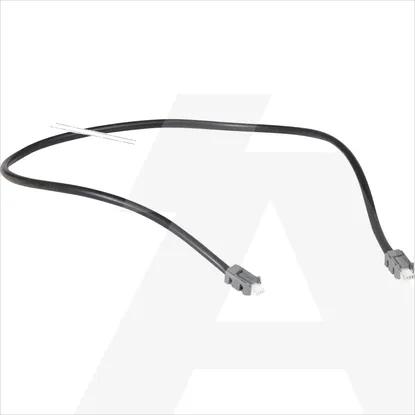

414909 | EMS CX3 5 Patch Cords 1000MM
Code: 2011991
ManufacturerLegrand
Catalog number414909
TypeLegrand 414909
CategoryData and communication cable
EAN code3414970805386
Details
- •Cables
- •Data and communication cable (copper)
- •1 KOM
- •LEGRAND
Technical specifications
Stranding elementNo
Core identificationColour
Material core insulationPolyvinyl chloride (PVC)
ArmouringNo
UV resistantNo
Screen over stranding elementNone
Diameter conductor0.404mm
Screen over strandingNone
Permitted cable outer temperature during assembling/handling80 - 80°C
Number of stranding elements-
Number of cores7
Low smoke (according to IEC 61034-2)No
Material outer sheathPolyvinyl chloride (PVC)
AWG-size26
Suitable for underground installationNo
Permitted cable outer temperature after assembling without vibration80 - 80°C
Halogen free (according to EN 60754-1/2)Yes
Insulation integrity according to IEC 60331No
Oil resistant (according to IEC 60811-404)No
NVP value-%
Low smoke (according to EN 61034-2)No
Radial water blocking cableNo
Longitudinal water blocking cableNo
Oil resistant (according to EN 60811-404)No
Conductor surfaceBare
Outer diameter approx.0.95mm
Halogen free (according to IEC 60754-2)No
Conductor categoryClass 1 = solid
Min. permitted bending radius, moving application with forced guidance-mm
Min. permitted bending radius, moving application/free movement-mm
Min. permitted bending radius, stationary application/permanent installation-mm
Nominal cross section conductor0.128mm²
Colour outer sheathOther
