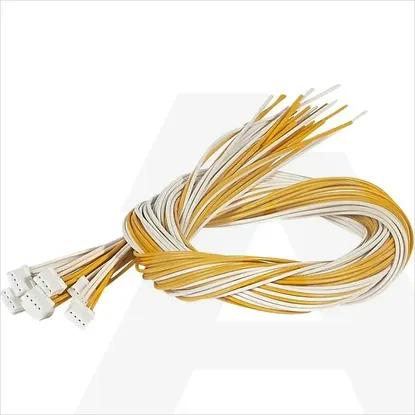

421078 | DPX3 Selectivity Wires
Code: 2012013
ManufacturerLegrand
Catalog number421078
TypeLegrand 421078
CategoryCable connector
EAN code3245064210782
Details
- •Connectors
- •Cable connector
- •1 KOM
- •LEGRAND
Technical specifications
Type of connectionPrinted circuit board to printed circuit board
Colour housingWhite
Operating temperature-25 - 70°C
Contact typeHermaphrodite
Rated surge voltage0.5kV
Modular spacing contacts1.2mm
Material of contact surfaceTin
Number of plug-in contact rows4
Inflammability class of insulation material according to with UL94V0
Material housingOther
Over voltage categoryI
Connectable conductor cross section fine-strand with cable end sleeve0.14 - 0.14mm²
Connectable cable typeOther
Connectable conductor cross section solid-core0.14 - 0.14mm²
Material contactCopper
With protective conductorNo
Modular spacing connections1.95mm
Material insulation bodyOther
Connectable conductor cross section multi-wired0.14 - 0.14mm²
Connectable conductor cross section fine-strand without cable end sleeve0.14 - 0.14mm²
Angle contact/conductor connectionOther
Rated voltage24V
Number of poles-
Type of electric connectionInsulation piercing connection
Degree of protection (IP), mountedIP00
Rated current In1600A
