Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
InterlockableYes
Rated permanent current Iu25A
Number of poles2
Number of switches1
Conditioned rated short-circuit current Iq-kA
Height130mm
Width in number of modular spacings-
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Width111mm
Rated operation power at AC-3, 400 V-kW
Rated operating voltage690 - 690V
Degree of protection (IP), front sideIP65
Depth60mm
Number of auxiliary contacts as change-over contact0
Rated operation power at AC-23, 400 V-kW
Version as emergency stop installationNo
Version as maintenance-/service switchYes
Motor drive integratedNo
Colour control elementGrey
Version as safety switchNo
Rated short-time withstand current lcw-kA
Version as main switchYes
Type of control elementRocker lever
Motor drive optionalNo
Suitable for intermediate mountingNo
Suitable for front mounting 4-holeNo
Suitable for floor mountingNo
Max. rated operation voltage Ue AC690V
Suitable for distribution board installationYes
Suitable for front mounting centreNo
Device constructionComplete device in housing
Voltage release optionalNo
Version as reversing switchNo
With pre-assembled cablingNo
Rated permanent current at AC-23, 400 V-A
Switching power at 400 V-kW
Rated permanent current at AC-21, 400 V-A
Degree of protection (NEMA)Other
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

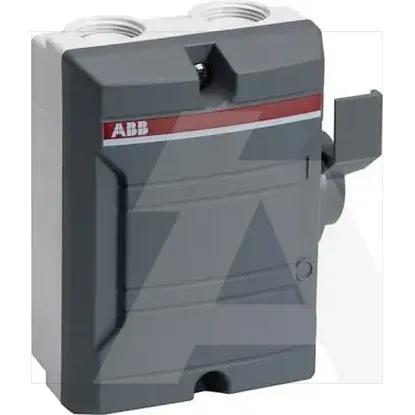

2CMA142400R1000 | BW225DP
