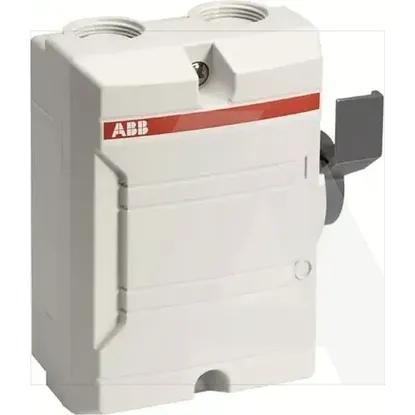

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Width111mm
Number of poles3
Depth60mm
Height130mm
Conditioned rated short-circuit current Iq-kA
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally open contact0
Rated operating voltage690 - 690V
Width in number of modular spacings-
Degree of protection (IP), front sideIP65
Rated permanent current Iu25A
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally closed contact0
Number of switches1
InterlockableYes
Motor drive integratedNo
Suitable for front mounting centreNo
Suitable for distribution board installationYes
Rated short-time withstand current lcw-kA
Suitable for intermediate mountingNo
Version as main switchYes
Colour control elementGrey
Suitable for floor mountingNo
Rated operation power at AC-23, 400 V7.5kW
Version as emergency stop installationNo
Version as safety switchNo
Suitable for front mounting 4-holeNo
Version as maintenance-/service switchYes
Type of control elementRocker lever
Degree of protection (NEMA)Other
Rated permanent current at AC-23, 400 V16A
Max. rated operation voltage Ue AC690V
With pre-assembled cablingNo
Device constructionComplete device in housing
Version as reversing switchNo
Rated permanent current at AC-21, 400 V-A
Motor drive optionalNo
Switching power at 400 V7.5kW
Voltage release optionalNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
2CMA142402R1000 | BW325WTPN
