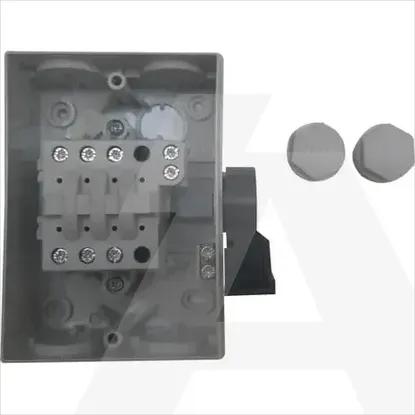

2CMA142404R1000 | BW325LTPN
Code: 2024721
ManufacturerABB
Catalog number2CMA142404R1000
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code7392696424042
Details
- •BW325LTPN ENCLOSED SWITCH DISCONNECTOR
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Width111mm
Rated operation power at AC-3, 400 V-kW
Depth60mm
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Height130mm
Number of switches1
Conditioned rated short-circuit current Iq-kA
Width in number of modular spacings-
Degree of protection (IP), front sideIP65
Number of auxiliary contacts as change-over contact0
InterlockableYes
Motor drive integratedNo
Version as emergency stop installationNo
Type of control elementRocker lever
Version as main switchYes
Rated operating voltage690 - 690V
Suitable for floor mountingNo
Version as maintenance-/service switchYes
Device constructionComplete device in housing
Colour control elementGrey
Version as safety switchNo
Degree of protection (NEMA)Other
Suitable for intermediate mountingNo
Version as reversing switchNo
Rated permanent current at AC-23, 400 V16A
Rated short-time withstand current lcw-kA
With pre-assembled cablingNo
Voltage release optionalNo
Rated permanent current at AC-21, 400 V-A
Rated operation power at AC-23, 400 V7.5kW
Switching power at 400 V7.5kW
Suitable for distribution board installationYes
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
Motor drive optionalNo
Rated permanent current Iu25A
Number of poles3
Max. rated operation voltage Ue AC690V
