2CMA142410R1000 | BW640TPN
Code: 2024727
ManufacturerABB
Catalog number2CMA142410R1000
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code7392696424103
Details

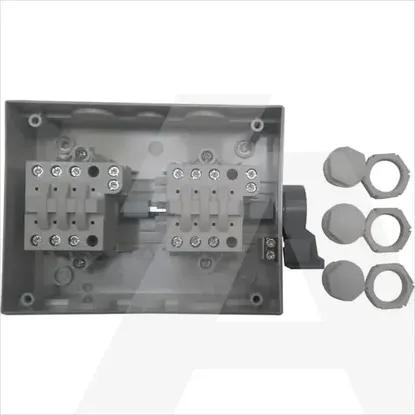

- •BW640TPN ENCLOSED SWITCH DISCONNECTOR
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Depth65mm
Width190mm
Height130mm
Number of auxiliary contacts as change-over contact0
Rated operating voltage690 - 690V
Rated operation power at AC-3, 400 V-kW
Degree of protection (IP), front sideIP65
Conditioned rated short-circuit current Iq-kA
Type of control elementRocker lever
Number of auxiliary contacts as normally closed contact0
Rated short-time withstand current lcw-kA
Motor drive integratedNo
Rated operation power at AC-23, 400 V11kW
Width in number of modular spacings-
Version as maintenance-/service switchYes
Number of auxiliary contacts as normally open contact0
Version as emergency stop installationNo
Version as safety switchNo
Number of switches1
InterlockableYes
Version as main switchYes
Colour control elementGrey
Suitable for front mounting 4-holeNo
Suitable for floor mountingNo
Suitable for front mounting centreNo
Rated permanent current at AC-23, 400 V25A
Suitable for distribution board installationYes
Degree of protection (NEMA)Other
Rated permanent current at AC-21, 400 V-A
Motor drive optionalNo
With pre-assembled cablingNo
Voltage release optionalNo
Device constructionComplete device in housing
Switching power at 400 V11kW
Version as reversing switchNo
Suitable for intermediate mountingNo
Rated permanent current Iu40A
Number of poles6
Max. rated operation voltage Ue AC690V
