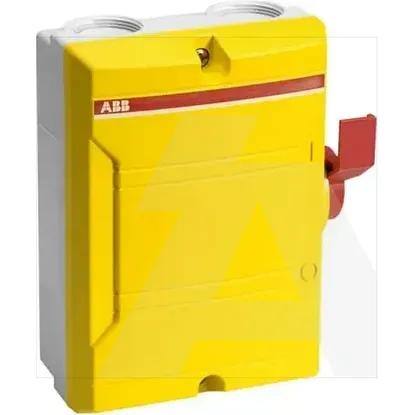

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Version as maintenance-/service switchYes
Version as main switchYes
Version as emergency stop installationNo
Number of switches1
Version as reversing switchNo
Rated operating voltage690 - 690V
Rated permanent current at AC-23, 400 V25A
Rated permanent current at AC-21, 400 V-A
Rated short-time withstand current lcw-kA
Rated permanent current Iu32A
Switching power at 400 V11kW
Rated operation power at AC-23, 400 V11kW
Conditioned rated short-circuit current Iq-kA
Max. rated operation voltage Ue AC690V
Number of poles3
Rated operation power at AC-3, 400 V-kW
Version as safety switchYes
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact1
Number of auxiliary contacts as change-over contact0
Motor drive optionalNo
Motor drive integratedNo
Suitable for floor mountingNo
Device constructionComplete device in housing
Voltage release optionalNo
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
Suitable for distribution board installationYes
Type of control elementRocker lever
Suitable for intermediate mountingNo
Colour control elementRed
InterlockableYes
Degree of protection (IP), front sideIP65
With pre-assembled cablingNo
Degree of protection (NEMA)Other
Height168mm
Width138mm
Depth68mm
Width in number of modular spacings-
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
2CMA142426R1000 | BWS325YTPN
