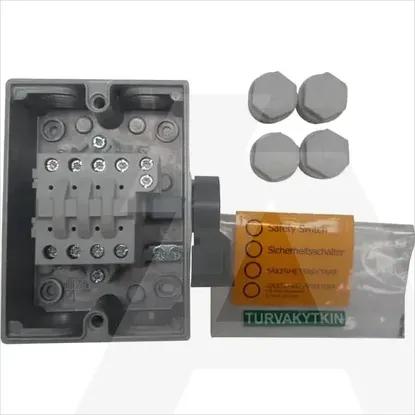

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Width111mm
Height130mm
Number of auxiliary contacts as normally open contact1
Number of poles3
Version as maintenance-/service switchYes
Number of auxiliary contacts as change-over contact0
Version as safety switchYes
Motor drive integratedNo
Number of auxiliary contacts as normally closed contact0
Rated permanent current Iu32A
Colour control elementGrey
Rated operation power at AC-3, 400 V-kW
Conditioned rated short-circuit current Iq-kA
Rated short-time withstand current lcw-kA
Width in number of modular spacings-
Version as emergency stop installationNo
Rated operation power at AC-23, 400 V7.5kW
Rated operating voltage690 - 690V
Type of control elementRocker lever
Version as main switchYes
InterlockableYes
Suitable for floor mountingNo
Degree of protection (IP), front sideIP65
Depth60mm
Number of switches1
Suitable for front mounting 4-holeNo
Device constructionComplete device in housing
Version as reversing switchNo
Suitable for front mounting centreNo
Degree of protection (NEMA)Other
Motor drive optionalNo
Switching power at 400 V7.5kW
Suitable for distribution board installationYes
With pre-assembled cablingNo
Rated permanent current at AC-23, 400 V16A
Max. rated operation voltage Ue AC690V
Suitable for intermediate mountingNo
Rated permanent current at AC-21, 400 V-A
Voltage release optionalNo
