2CMA142441R1000 | BW325YTPN
Code: 2024732
ManufacturerABB
Catalog number2CMA142441R1000
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code7392696424417
Details

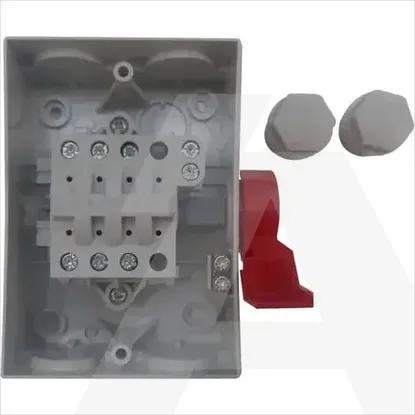

- •BW325YTPN ENCLOSED SWITCH DISCONNECTOR
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Depth60mm
Number of auxiliary contacts as normally closed contact0
Width111mm
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V-kW
Height130mm
Rated operating voltage690 - 690V
Rated operation power at AC-23, 400 V7.5kW
Width in number of modular spacings-
Version as main switchYes
Suitable for intermediate mountingNo
Type of control elementRocker lever
Suitable for front mounting 4-holeNo
Degree of protection (IP), front sideIP65
InterlockableYes
Version as maintenance-/service switchYes
Version as emergency stop installationNo
Motor drive integratedNo
Suitable for floor mountingNo
Version as safety switchNo
Number of switches1
Suitable for front mounting centreNo
Colour control elementRed
Number of auxiliary contacts as change-over contact0
Voltage release optionalNo
Suitable for distribution board installationYes
Rated short-time withstand current lcw-kA
Motor drive optionalNo
Conditioned rated short-circuit current Iq-kA
Device constructionComplete device in housing
Rated permanent current at AC-23, 400 V16A
Version as reversing switchNo
Degree of protection (NEMA)Other
Rated permanent current at AC-21, 400 V-A
Switching power at 400 V7.5kW
With pre-assembled cablingNo
Rated permanent current Iu25A
Number of poles3
Max. rated operation voltage Ue AC690V
