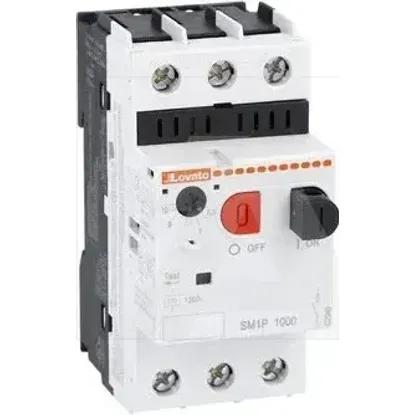

SM1P1000 | MOTORSKI ZAŠT. PREKIDAČ SM1P
Code: 2025127
ManufacturerLovato
Catalog numberSM1P1000
TypeMotor protection circuit-breaker
CategoryMotor protection circuit-breaker
EAN code8013975216194
Details
- •Low-voltage industrial components
- •Motor protection circuit-breaker
- •1 KOM
- •LOVATO
Technical specifications
With thermal protectionYes
Width45mm
Type of control elementPush button
With integrated auxiliary switchNo
With integrated under voltage releaseNo
Rated operating voltage0 - 690V
Degree of protection (IP)IP20
Height97mm
Switch off techniqueThermomagnetic
Type of electrical connection of main circuitScrew connection
Adjustment range undelayed short-circuit release130 - 130A
Phase failure sensitiveYes
Depth75mm
Device constructionComplete device in housing
Rated permanent current Iu10A
Number of poles3
Overload release current setting6.3 - 10A
Rated short-circuit breaking capacity lcu at 400 V, AC100kA
