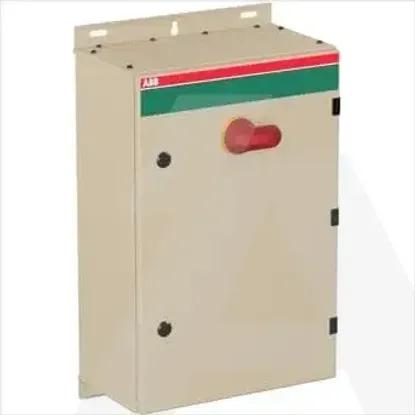

1SCA022700R6340 | OT200KUUR3AZ
Code: 2025136
ManufacturerABB
Catalog number1SCA022700R6340
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019223681
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Depth230mm
Degree of protection (IP), front sideIP65
Width400mm
Rated operating voltage1000 - 1000V
Width in number of modular spacings-
Number of switches1
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally open contact2
Number of auxiliary contacts as normally closed contact1
Height600mm
Rated operation power at AC-3, 400 V-kW
Conditioned rated short-circuit current Iq-kA
InterlockableYes
Motor drive integratedNo
Version as safety switchYes
Type of control elementLong turning handle
Version as main switchYes
Suitable for front mounting centreNo
Suitable for intermediate mountingNo
Version as maintenance-/service switchYes
Rated operation power at AC-23, 400 V110kW
Version as emergency stop installationNo
Rated short-time withstand current lcw8kA
Suitable for distribution board installationYes
Colour control elementRed
Degree of protection (NEMA)Other
Switching power at 400 V110kW
Motor drive optionalNo
Suitable for front mounting 4-holeNo
Voltage release optionalNo
Rated permanent current at AC-23, 400 V200A
Rated permanent current at AC-21, 400 V-A
Device constructionComplete device in housing
Version as reversing switchNo
Suitable for floor mountingNo
With pre-assembled cablingNo
Rated permanent current Iu200A
Number of poles3
Max. rated operation voltage Ue AC1000V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
