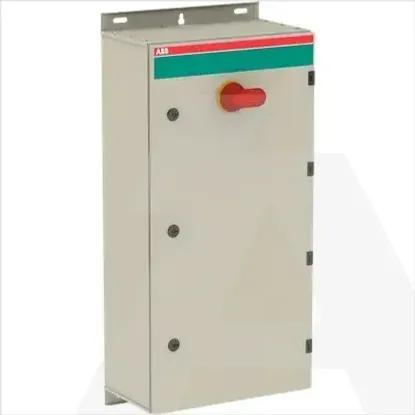

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Rated operating voltage1000 - 1000V
Width400mm
Number of poles3
Number of auxiliary contacts as normally open contact2
Version as emergency stop installationNo
Number of switches1
Motor drive integratedNo
Rated operation power at AC-3, 400 V-kW
Conditioned rated short-circuit current Iq-kA
Rated operation power at AC-23, 400 V132kW
Number of auxiliary contacts as normally closed contact1
Type of control elementLong turning handle
Version as maintenance-/service switchYes
Number of auxiliary contacts as change-over contact0
Version as safety switchYes
Depth230mm
Width in number of modular spacings-
Rated short-time withstand current lcw8kA
InterlockableYes
Degree of protection (IP), front sideIP65
Rated permanent current Iu250A
Version as main switchYes
Height800mm
Suitable for intermediate mountingNo
Suitable for floor mountingNo
Voltage release optionalNo
Device constructionComplete device in housing
With pre-assembled cablingNo
Colour control elementRed
Motor drive optionalNo
Degree of protection (NEMA)Other
Suitable for front mounting centreNo
Max. rated operation voltage Ue AC1000V
Suitable for distribution board installationYes
Rated permanent current at AC-23, 400 V250A
Rated permanent current at AC-21, 400 V-A
Switching power at 400 V132kW
Suitable for front mounting 4-holeNo
Version as reversing switchNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA022725R3190 | OT250KUUR3AZ
