Details
- •Programmable logic controllers PLC
- •Graphic panel
- •1 KOM
- •EATON
Technical specifications
Number of HW-interfaces RS-4220
Built-in depth25mm
Number of HW-interfaces RS-4850
Screen diagonal3.5inch
Number of HW-interfaces RS-2321
Number of HW-interfaces parallel0
Supporting protocol for LONNo
Number of HW-interfaces serial TTY0
Suitable for safety functionsNo
Voltage type of supply voltageDC
Power consumption5W
Number of HW-interfaces other1
Number of HW-interfaces USB1
Operating temperature0 - 50°C
Number of HW-interfaces industrial Ethernet0
Supporting protocol for ASINo
Supporting protocol for CANYes
Supporting protocol for TCP/IPYes
Supporting protocol for PROFIBUSNo
Supporting protocol for INTERBUSNo
Supporting protocol for Data-HighwayNo
Number of pixels, horizontal320
Supporting protocol for ModbusYes
With colour displayYes
Supporting protocol for SUCONETNo
Number of colours of the display65536
With numeric keyboardNo
With alpha numeric keyboardNo
Supporting protocol for other bus systemsYes
Supporting protocol for KNXNo
Number of pixels, vertical240
Supporting protocol for DeviceNetNo
Number of function buttons, programmable0
Degree of protection (IP), front sideIP65
With recipesYes
With message system (incl. buffer and confirmation)Yes
Useful project memory/user memory512000kByte
Number of password levels200
With message indicationYes
Process value representation (output) possibleYes
Number of online languages100
With printer outputYes
Additional software components, loadableYes
Process default value (input) possibleYes
Wall mounting/direct mountingNo
Rail mounting possibleNo
Number of interfaces PROFINET0
Radio standard BluetoothNo
Width of the front136mm
Supporting protocol for INTERBUS-SafetyNo
With SW interfacesYes
Number of HW-interfaces Wireless0
Supporting protocol for SERCOSNo
Height of the front100mm
Radio standard Wi-Fi 802.11No
IO link masterNo
Supporting protocol for PROFINET CBANo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for PROFIsafeNo
Supply voltage AC 50 Hz0 - 0V
Type of displayTFT
Supporting protocol for EtherNet/IPYes
Supply voltage AC 60 Hz0 - 0V
Number of grey-scales/blue-scales of display0
Supply voltage DC19.2 - 30V
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for SafetyBUS pNo
Supporting protocol for PROFINET IONo
Radio standard GSMNo
Radio standard UMTSNo
Certified for UL hazardous location group B (hydrogen)No
Certified for UL hazardous location division 1No
Certified for UL hazardous location class IINo
Number of system buttons1
Supporting protocol for EtherCATNo
Certified for UL hazardous location class IIINo
Certified for UL hazardous location division 2No
Certified for UL hazardous location group A (acetylene)No
Certified for UL hazardous location group G (non-conductive dusts)No
Radio standard GPRSNo
Certified for UL hazardous location group C (ethylene)No
Certified for UL hazardous location class INo
Degree of protection (NEMA), front side4X
Certified for UL hazardous location group F (carbonaceous dusts)No
Number of buttons with LED0
Certified for UL hazardous location group D (propane)No
Touch technologyResistive touch
Certified for UL hazardous location group E (metal dusts)No
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

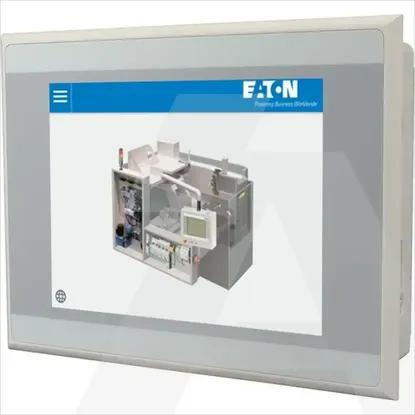

XV-102-L5-35TQRC-10 | Touch panel 3,5, color, Resistive touch, PLC licence, Linux, Ethernet, CANope
