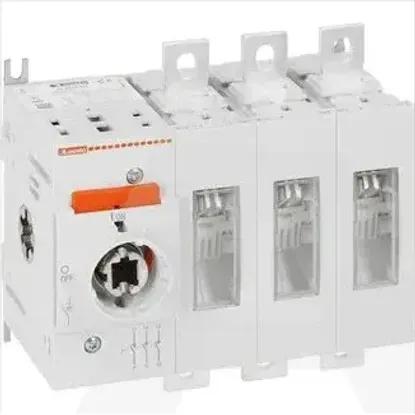

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •LOVATO
Technical specifications
Type of electrical connection of main circuitBolt connection
Number of auxiliary contacts as normally open contact0
InterlockableYes
Type of control elementDoor coupling rotary drive
Rated operating voltage400 - 690V
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally closed contact0
Version as emergency stop installationNo
Version as main switchYes
Conditioned rated short-circuit current Iq100kA
Number of poles3
Motor drive integratedNo
Version as maintenance-/service switchYes
Version as safety switchNo
Rated short-time withstand current lcw6kA
Suitable for floor mountingNo
Rated operation power at AC-23, 400 V90kW
Suitable for distribution board installationNo
Suitable for front mounting 4-holeNo
Max. rated operation voltage Ue AC690V
Motor drive optionalNo
Rated permanent current at AC-21, 400 V160A
Device constructionBuilt-in device fixed built-in technique
Rated permanent current at AC-23, 400 V160A
Version as reversing switchNo
Voltage release optionalNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
GL0160C1
