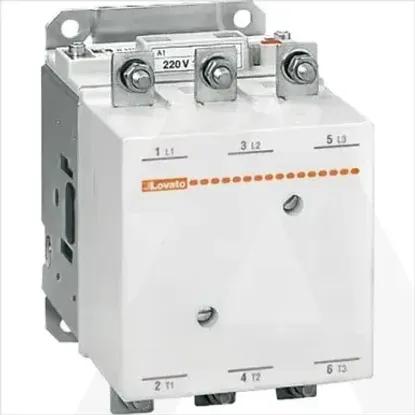

11B50000220 | SKLOPNIK B500.00

Rated control supply voltage Us at AC 50HZ

220 - 240V

Rated control supply voltage Us at AC 60HZ

220 - 240V

Voltage type for actuating

AC/DC

Rated control supply voltage Us at DC

220 - 240V

Number of normally closed contacts as main contact

0

Rated operation power at AC-3, 400 V

290kW

Number of normally open contacts as main contact

3

Rated operation current Ie at AC-3, 400 V

520A

Type of electrical connection of main circuit

Bolt connection

Rated operation current Ie at AC-1, 400 V

700A

Rated operation current Ie at AC-4, 400 V

175A

Modular version

No

Number of auxiliary contacts as normally closed contact

0

Number of auxiliary contacts as normally open contact

0
