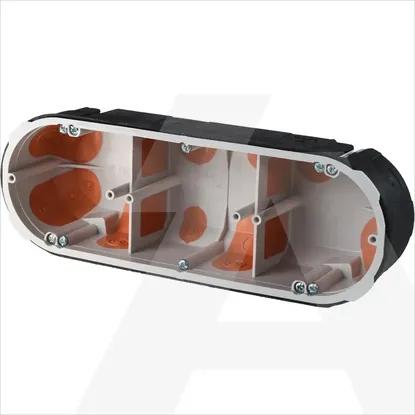

KPZ 68-50/3_PO | 3-STRUKA KUTIJA GIPS VATROOTPORNA d=53
Code: 2027337
Details
- •Connection devices
- •Box/housing for built-in mounting in the wall/ceiling
- •1 KOM
- •KOPOS
Technical specifications
Mounting methodHollow wall
Construction typeBuilt-in installation box (device box)
ModelSingle
ShapeOval
ConnectableNo
Provided with revolving ringNo
Diameter73mm
Length-mm
Housing feed-through by seal membraneYes
Mounting switching equipmentScrewing
Width215mm
Equipped withNone
Housing feed-through by break-out openingNo
Internal depth-mm
For number of electric fittings3
Depth53 - 53mm
With screwsYes
Housing feed-through by nozzleNo
For tube diameter20/25 mm
Inlet from the rearYes
Suitable for cable diameter7 - 20mm
Housing feed-through by step membraneNo
Pipe lockingNo
Number of included spouts-
Pipe locking optionalNo
MaterialPlastic
Halogen freeYes
Number of inlets10
Degree of protection (IP)IP30
ColourBlack
Transparent coverNo
SealableNo
With screeningNo
Circuit integrityNone
Number of poles of the clamp-
Air tightYes
Max. conductor cross section4mm²
Luminaire hook mountingNo
With nail lugsNo
Clamp position fixedNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
