Details
- •Terminal blocks
- •Feed-through terminal block
- •50 KOM
- •PHOENIX
Technical specifications
Connectable conductor cross section fine-strand without cable end sleeve0.14 - 4mm²
Type of electrical connection 1Other
Type of electrical connection 2Other
Inflammability class of insulation material according to with UL94V0
Width5.2mm
Connectable conductor cross section solid-core0.14 - 4mm²
Material insulation bodyOther
Closing plate requiredYes
Depth68.6mm
Connectable conductor cross section fine-strand with cable end sleeve0.14 - 0.14mm²
Height142.4mm
ColourGrey
Suitable for conductor materialAluminium/copper
Mounting methodDIN rail (top hat rail) 35 mm
Internally connected stagesNo
Number of clamp positions per level2
Rated current In20A
Rated voltage500V
Number of levels4
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

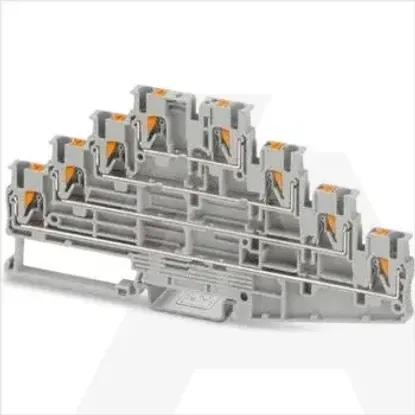

1334599 | PT 2,5-4L
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Terminal blocks
- Feed-through terminal block
- 50 KOM
- PHOENIX
DetailsTechnical specifications
Technical specifications
Connectable conductor cross section fine-strand without cable end sleeve
0.14 .. 4mm²
Type of electrical connection 1
Other
Type of electrical connection 2
Other
Inflammability class of insulation material according to with UL94
V0
Width
5.2mm
Connectable conductor cross section solid-core
0.14 .. 4mm²
Material insulation body
Other
Closing plate required
Depth
68.6mm
Connectable conductor cross section fine-strand with cable end sleeve
0.14 .. 0.14mm²
Height
142.4mm
Colour
Grey
Suitable for conductor material
Aluminium/copper
Mounting method
DIN rail (top hat rail) 35 mm
Internally connected stages
Number of clamp positions per level
2
Rated current In
20A
Rated voltage
500V
Number of levels
4
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
