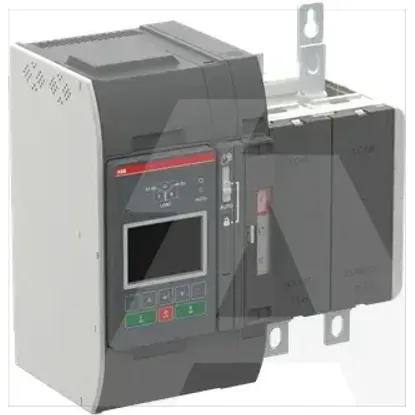

1SCA153467R1001 | OXB260U2X3QB
Code: 2030857
ManufacturerABB
Catalog number1SCA153467R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019844930
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Version as reversing switchNo
Rated operating voltage- - -V
Rated short-time withstand current lcw18kA
Number of switches1
Rated permanent current at AC-21, 400 V-A
Switching power at 400 V-kW
Rated permanent current at AC-23, 400 V-A
Rated operation power at AC-23, 400 V-kW
Version as main switchYes
Rated operation power at AC-3, 400 V-kW
Version as safety switchNo
Conditioned rated short-circuit current Iq-kA
Version as emergency stop installationNo
Version as maintenance-/service switchYes
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally closed contact0
Suitable for front mounting 4-holeYes
Suitable for floor mountingNo
Motor drive integratedYes
Motor drive optionalNo
Voltage release optionalNo
Suitable for intermediate mountingNo
InterlockableNo
Device constructionBuilt-in device plug-in technique
Type of control elementLong turning handle
Suitable for distribution board installationYes
Suitable for front mounting centreNo
Type of electrical connection of main circuitBolt connection
With pre-assembled cablingNo
Degree of protection (IP), front sideIP20
Width325mm
Degree of protection (NEMA)1
Height305mm
Depth183mm
Width in number of modular spacings-
Rated permanent current Iu-A
Number of poles2
Max. rated operation voltage Ue AC240V
