Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Version as maintenance-/service switchYes
Rated permanent current at AC-21, 400 V-A
Rated permanent current at AC-23, 400 V90A
Conditioned rated short-circuit current Iq-kA
Switching power at 400 V45kW
Rated operation power at AC-23, 400 V45kW
Version as reversing switchNo
Version as main switchYes
Number of switches1
Version as emergency stop installationNo
Version as safety switchYes
Rated operating voltage750 - 750V
Number of poles3
Rated operation power at AC-3, 400 V-kW
Max. rated operation voltage Ue AC750V
Rated permanent current Iu125A
Rated short-time withstand current lcw2.5kA
Number of auxiliary contacts as normally closed contact0
Motor drive integratedNo
Number of auxiliary contacts as normally open contact1
Motor drive optionalNo
Suitable for intermediate mountingNo
Number of auxiliary contacts as change-over contact0
Suitable for front mounting 4-holeNo
Colour control elementBlack
Suitable for front mounting centreNo
Suitable for distribution board installationYes
InterlockableYes
Device constructionComplete device in housing
Type of electrical connection of main circuitScrew connection
Voltage release optionalNo
Width200mm
Height300mm
With pre-assembled cablingNo
Degree of protection (IP), front sideIP65
Type of control elementLong turning handle
Suitable for floor mountingNo
Degree of protection (NEMA)Other
Depth135mm
Width in number of modular spacings-
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

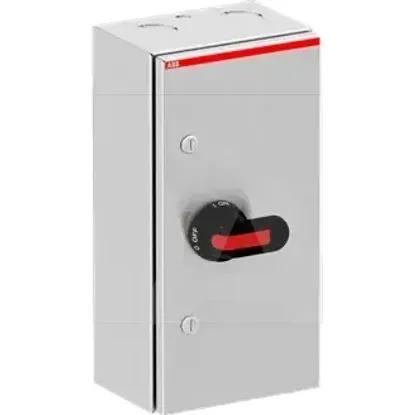

1SCA161469R1001 | OTR90T3M
