Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Version as reversing switchNo
Version as emergency stop installationNo
Version as safety switchNo
Number of switches1
Version as main switchYes
Rated permanent current at AC-23, 400 V-A
Rated permanent current Iu100A
Rated operating voltage800 - 800V
Max. rated operation voltage Ue AC800V
Version as maintenance-/service switchYes
Switching power at 400 V-kW
Rated operation power at AC-23, 400 V-kW
Rated short-time withstand current lcw2.5kA
Rated permanent current at AC-21, 400 V-A
Conditioned rated short-circuit current Iq50kA
Number of poles4
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Motor drive integratedNo
Voltage release optionalNo
Device constructionComplete device in housing
Suitable for front mounting centreNo
Suitable for floor mountingNo
Suitable for intermediate mountingNo
Colour control elementBlack
Suitable for distribution board installationYes
InterlockableNo
Type of electrical connection of main circuitScrew connection
Degree of protection (IP), front sideIP20
With pre-assembled cablingNo
Suitable for front mounting 4-holeNo
Width95.5mm
Type of control elementOther
Degree of protection (NEMA)Other
Height123mm
Motor drive optionalNo
Number of auxiliary contacts as change-over contact0
Width in number of modular spacings-
Depth74.6mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

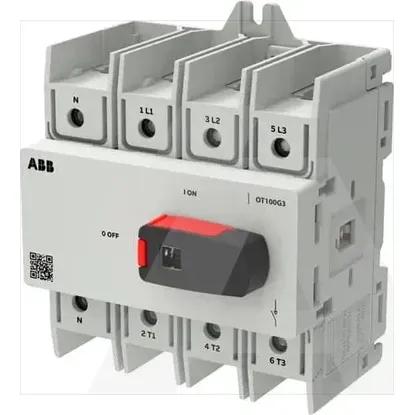

1SCA162512R1001 | OT100G3-4BSN1
