Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Version as maintenance-/service switchYes
Version as safety switchNo
Version as main switchYes
Version as reversing switchNo
Version as emergency stop installationNo
Rated operating voltage800 - 800V
Rated permanent current Iu100A
Max. rated operation voltage Ue AC800V
Rated permanent current at AC-21, 400 V-A
Rated permanent current at AC-23, 400 V-A
Rated operation power at AC-3, 400 V-kW
Switching power at 400 V-kW
Number of poles4
Conditioned rated short-circuit current Iq50kA
Rated short-time withstand current lcw2.5kA
Rated operation power at AC-23, 400 V-kW
Number of switches1
Number of auxiliary contacts as normally closed contact0
Motor drive optionalNo
Motor drive integratedNo
Suitable for floor mountingNo
Number of auxiliary contacts as normally open contact0
Device constructionComplete device in housing
Number of auxiliary contacts as change-over contact0
Suitable for front mounting centreNo
Suitable for front mounting 4-holeNo
Colour control elementBlack
Suitable for distribution board installationYes
InterlockableNo
With pre-assembled cablingNo
Degree of protection (IP), front sideIP20
Type of electrical connection of main circuitScrew connection
Suitable for intermediate mountingNo
Type of control elementOther
Degree of protection (NEMA)Other
Width95.5mm
Voltage release optionalNo
Height123mm
Width in number of modular spacings-
Depth74.6mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

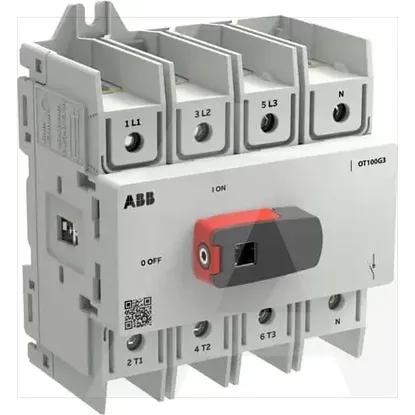

1SCA162513R1001 | OT100G3-4BSN2
