Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Version as maintenance-/service switchYes
Version as safety switchNo
Rated operation power at AC-3, 400 V-kW
Version as reversing switchNo
Rated operation power at AC-23, 400 V-kW
Rated short-time withstand current lcw2.5kA
Version as main switchYes
Version as emergency stop installationNo
Conditioned rated short-circuit current Iq50kA
Number of poles3
Rated permanent current at AC-23, 400 V-A
Rated permanent current Iu100A
Rated operating voltage800 - 800V
Rated permanent current at AC-21, 400 V-A
Number of switches1
Switching power at 400 V-kW
Max. rated operation voltage Ue AC800V
Number of auxiliary contacts as normally open contact0
Motor drive optionalNo
Number of auxiliary contacts as normally closed contact0
Device constructionComplete device in housing
Suitable for front mounting 4-holeNo
Suitable for intermediate mountingNo
Voltage release optionalNo
Suitable for front mounting centreNo
Type of control elementOther
With pre-assembled cablingNo
Suitable for floor mountingNo
Degree of protection (NEMA)Other
Degree of protection (IP), front sideIP20
Width70mm
Type of electrical connection of main circuitScrew connection
Height102.5mm
Number of auxiliary contacts as change-over contact0
Motor drive integratedNo
InterlockableNo
Suitable for distribution board installationYes
Width in number of modular spacings-
Depth70mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

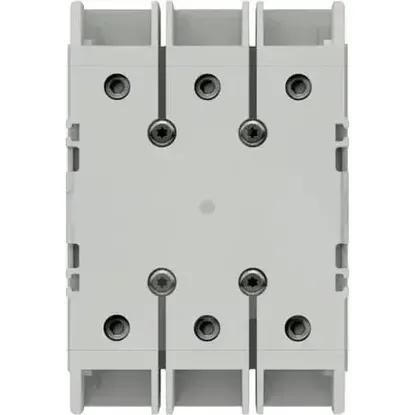

1SCA162515R1001 | OT100G3-3DS
