Aleta.hr

Details

  • Low-voltage industrial components
  • Switch disconnector (low voltage)
  • 1 KOM
  • ABB

Technical specifications

Version as main switchYes
Version as maintenance-/service switchYes
Version as reversing switchNo
Version as emergency stop installationNo
Version as safety switchNo
Number of switches1
Max. rated operation voltage Ue AC800V
Rated permanent current Iu160A
Rated short-time withstand current lcw2.5kA
Rated permanent current at AC-23, 400 V-A
Rated operation power at AC-3, 400 V-kW
Rated operating voltage800 - 800V
Rated permanent current at AC-21, 400 V-A
Switching power at 400 V-kW
Number of poles4
Rated operation power at AC-23, 400 V-kW
Conditioned rated short-circuit current Iq50kA
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as change-over contact0
Motor drive integratedNo
Voltage release optionalNo
Device constructionComplete device in housing
Suitable for floor mountingNo
Suitable for distribution board installationNo
Colour control elementBlack
Suitable for front mounting centreNo
Suitable for front mounting 4-holeNo
InterlockableNo
Number of auxiliary contacts as normally open contact0
Suitable for intermediate mountingNo
Motor drive optionalNo
Type of control elementOther
With pre-assembled cablingNo
Degree of protection (NEMA)Other
Type of electrical connection of main circuitScrew connection
Width95.5mm
Height123mm
Degree of protection (IP), front sideIP20
Width in number of modular spacings-
Depth74.6mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

1SCA162527R1001 | OT160G3-4BSN1

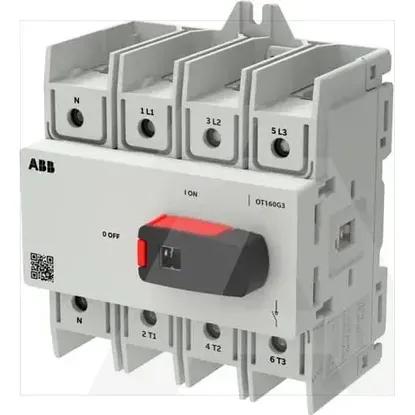

Main Product Image

Why Register?

  • View wholesale prices with discounts
  • Real-time stock availability
  • Access invoices and dispatch notes
  • Order history and frequently ordered items
  • Exclusive B2B offers

and much more...

Details

  • Low-voltage industrial components
  • Switch disconnector (low voltage)
  • 1 KOM
  • ABB

Technical specifications

Version as main switch

Version as maintenance-/service switch

Version as reversing switch

Version as emergency stop installation

Version as safety switch

Number of switches

1

Max. rated operation voltage Ue AC

800V

Rated permanent current Iu

160A

Rated short-time withstand current lcw

2.5kA

Rated permanent current at AC-23, 400 V

-A

Rated operation power at AC-3, 400 V

-kW

Rated operating voltage

800 .. 800V

Rated permanent current at AC-21, 400 V

-A

Switching power at 400 V

-kW

Number of poles

4

Rated operation power at AC-23, 400 V

-kW

Conditioned rated short-circuit current Iq

50kA

Number of auxiliary contacts as normally closed contact

0

Number of auxiliary contacts as change-over contact

0

Motor drive integrated

Voltage release optional

Device construction

Complete device in housing

Suitable for floor mounting

Suitable for distribution board installation

Colour control element

Black

Suitable for front mounting centre

Suitable for front mounting 4-hole

Interlockable

Number of auxiliary contacts as normally open contact

0

Suitable for intermediate mounting

Motor drive optional

Type of control element

Other

With pre-assembled cabling

Degree of protection (NEMA)

Other

Type of electrical connection of main circuit

Screw connection

Width

95.5mm

Height

123mm

Degree of protection (IP), front side

IP20

Width in number of modular spacings

-

Depth

74.6mm

VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
