Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Version as main switchYes
Version as maintenance-/service switchYes
Version as safety switchNo
Version as reversing switchNo
Version as emergency stop installationNo
Number of switches1
Rated operating voltage800 - 800V
Max. rated operation voltage Ue AC800V
Rated permanent current Iu160A
Rated permanent current at AC-23, 400 V-A
Rated operation power at AC-3, 400 V-kW
Rated permanent current at AC-21, 400 V-A
Rated operation power at AC-23, 400 V-kW
Conditioned rated short-circuit current Iq50kA
Switching power at 400 V-kW
Number of poles4
Rated short-time withstand current lcw2.5kA
Number of auxiliary contacts as normally open contact0
Motor drive optionalNo
Motor drive integratedNo
Number of auxiliary contacts as normally closed contact0
Suitable for floor mountingNo
Device constructionComplete device in housing
Voltage release optionalNo
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
Colour control elementBlack
Suitable for intermediate mountingNo
InterlockableNo
Suitable for distribution board installationNo
Type of electrical connection of main circuitScrew connection
With pre-assembled cablingNo
Degree of protection (IP), front sideIP20
Number of auxiliary contacts as change-over contact0
Type of control elementOther
Degree of protection (NEMA)Other
Width95.5mm
Height123mm
Width in number of modular spacings-
Depth74.6mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

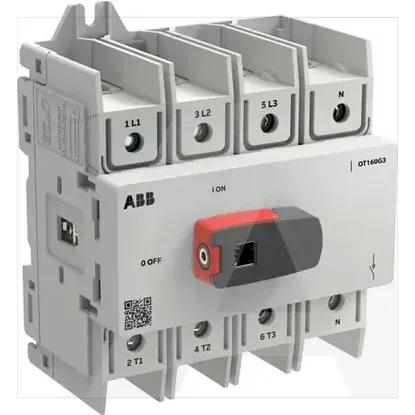

1SCA162528R1001 | OT160G3-4BSN2
