Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Version as reversing switchNo
Number of switches1
Rated permanent current at AC-23, 400 V-A
Rated operating voltage800 - 800V
Version as safety switchNo
Max. rated operation voltage Ue AC800V
Rated operation power at AC-3, 400 V-kW
Version as maintenance-/service switchYes
Rated permanent current at AC-21, 400 V-A
Conditioned rated short-circuit current Iq50kA
Rated operation power at AC-23, 400 V-kW
Rated short-time withstand current lcw2.5kA
Rated permanent current Iu160A
Version as emergency stop installationNo
Number of poles4
Version as main switchYes
Switching power at 400 V-kW
Number of auxiliary contacts as change-over contact0
Motor drive optionalNo
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Device constructionComplete device in housing
Voltage release optionalNo
Suitable for front mounting centreNo
Motor drive integratedNo
Suitable for distribution board installationNo
Suitable for front mounting 4-holeNo
Suitable for intermediate mountingNo
Type of electrical connection of main circuitScrew connection
Type of control elementOther
With pre-assembled cablingNo
Width95.5mm
Degree of protection (NEMA)Other
Height102.5mm
Degree of protection (IP), front sideIP20
InterlockableNo
Suitable for floor mountingNo
Width in number of modular spacings-
Depth70mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

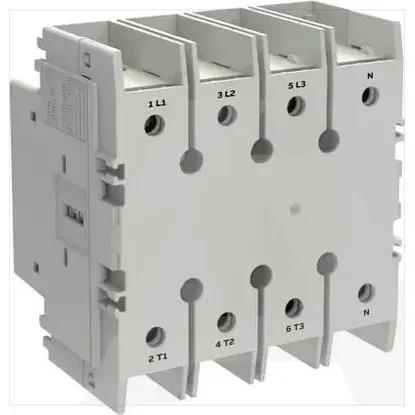

1SCA162536R1001 | OT160G3-4DSN2
