Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Version as emergency stop installationNo
Version as maintenance-/service switchYes
Version as safety switchNo
Rated operation power at AC-23, 400 V-kW
Max. rated operation voltage Ue AC800V
Rated operating voltage800 - 800V
Version as reversing switchNo
Number of switches1
Switching power at 400 V-kW
Rated operation power at AC-3, 400 V-kW
Rated permanent current Iu100A
Version as main switchYes
Rated permanent current at AC-21, 400 V-A
Number of poles6
Rated short-time withstand current lcw2.5kA
Rated permanent current at AC-23, 400 V-A
Conditioned rated short-circuit current Iq50kA
Number of auxiliary contacts as normally closed contact0
Motor drive optionalNo
Motor drive integratedNo
Number of auxiliary contacts as change-over contact0
Suitable for front mounting centreNo
Suitable for front mounting 4-holeNo
Device constructionComplete device in housing
Suitable for intermediate mountingNo
Voltage release optionalNo
Type of control elementOther
Type of electrical connection of main circuitScrew connection
Suitable for distribution board installationYes
Degree of protection (NEMA)Other
Number of auxiliary contacts as normally open contact0
With pre-assembled cablingNo
Colour control elementBlack
Width123mm
Degree of protection (IP), front sideIP20
InterlockableNo
Suitable for floor mountingNo
Height140mm
Depth95mm
Width in number of modular spacings-
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

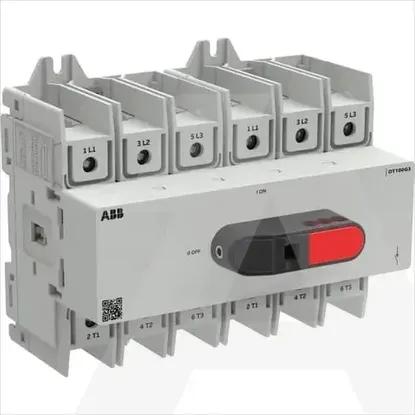

1SCA162667R1001 | OT100G3-6BS
