Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Version as maintenance-/service switchYes
Version as main switchYes
Version as reversing switchNo
Version as emergency stop installationNo
Max. rated operation voltage Ue AC800V
Rated operating voltage800 - 800V
Rated permanent current Iu100A
Rated permanent current at AC-23, 400 V-A
Rated short-time withstand current lcw2.5kA
Number of poles8
Switching power at 400 V-kW
Rated operation power at AC-23, 400 V-kW
Rated permanent current at AC-21, 400 V-A
Conditioned rated short-circuit current Iq50kA
Rated operation power at AC-3, 400 V-kW
Number of switches1
Version as safety switchNo
Number of auxiliary contacts as normally closed contact0
Motor drive integratedNo
Suitable for floor mountingNo
Number of auxiliary contacts as change-over contact0
Voltage release optionalNo
Number of auxiliary contacts as normally open contact0
Device constructionComplete device in housing
Motor drive optionalNo
Suitable for distribution board installationYes
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
InterlockableNo
Height191mm
Colour control elementBlack
Degree of protection (IP), front sideIP20
Type of control elementOther
Type of electrical connection of main circuitScrew connection
With pre-assembled cablingNo
Degree of protection (NEMA)Other
Suitable for intermediate mountingNo
Width123mm
Depth95mm
Width in number of modular spacings-
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

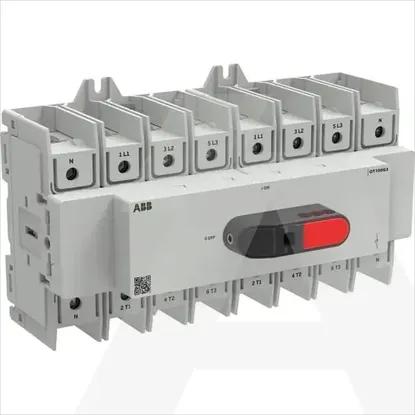

1SCA162668R1001 | OT100G3-8BS
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Switch disconnector (low voltage)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Version as maintenance-/service switch
Version as main switch
Version as reversing switch
Version as emergency stop installation
Max. rated operation voltage Ue AC
800V
Rated operating voltage
800 .. 800V
Rated permanent current Iu
100A
Rated permanent current at AC-23, 400 V
-A
Rated short-time withstand current lcw
2.5kA
Number of poles
8
Switching power at 400 V
-kW
Rated operation power at AC-23, 400 V
-kW
Rated permanent current at AC-21, 400 V
-A
Conditioned rated short-circuit current Iq
50kA
Rated operation power at AC-3, 400 V
-kW
Number of switches
1
Version as safety switch
Number of auxiliary contacts as normally closed contact
0
Motor drive integrated
Suitable for floor mounting
Number of auxiliary contacts as change-over contact
0
Voltage release optional
Number of auxiliary contacts as normally open contact
0
Device construction
Complete device in housing
Motor drive optional
Suitable for distribution board installation
Suitable for front mounting 4-hole
Suitable for front mounting centre
Interlockable
Height
191mm
Colour control element
Black
Degree of protection (IP), front side
IP20
Type of control element
Other
Type of electrical connection of main circuit
Screw connection
With pre-assembled cabling
Degree of protection (NEMA)
Other
Suitable for intermediate mounting
Width
123mm
Depth
95mm
Width in number of modular spacings
-
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
