Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Version as main switchYes
Version as maintenance-/service switchYes
Version as reversing switchNo
Rated permanent current at AC-23, 400 V-A
Switching power at 400 V-kW
Number of switches1
Rated operation power at AC-23, 400 V-kW
Rated operating voltage800 - 800V
Rated short-time withstand current lcw2.5kA
Rated operation power at AC-3, 400 V-kW
Version as emergency stop installationNo
Version as safety switchNo
Max. rated operation voltage Ue AC800V
Number of poles6
Rated permanent current at AC-21, 400 V-A
Rated permanent current Iu160A
Conditioned rated short-circuit current Iq25kA
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
Motor drive integratedNo
Motor drive optionalNo
Device constructionComplete device in housing
Suitable for front mounting centreNo
Suitable for floor mountingNo
Suitable for front mounting 4-holeNo
Suitable for intermediate mountingNo
InterlockableNo
Voltage release optionalNo
Type of control elementOther
Colour control elementBlack
Degree of protection (IP), front sideIP20
Type of electrical connection of main circuitScrew connection
Degree of protection (NEMA)Other
With pre-assembled cablingNo
Height140mm
Suitable for distribution board installationNo
Width123mm
Depth95mm
Width in number of modular spacings-
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

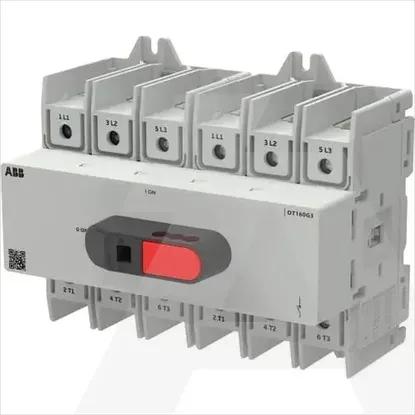

1SCA162671R1001 | OT160G3-6BS
