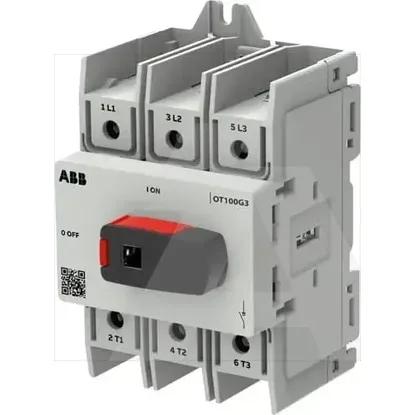

1SCA163843R1001 | OT100G3-3BS/32
Code: 2031003
ManufacturerABB
Catalog number1SCA163843R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019931685
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 32 pcs
- •ABB
Technical specifications
Version as safety switchNo
Version as maintenance-/service switchYes
Version as emergency stop installationNo
Version as main switchYes
Number of switches1
Version as reversing switchNo
Rated operation power at AC-3, 400 V-kW
Rated operating voltage800 - 800V
Switching power at 400 V-kW
Rated permanent current at AC-21, 400 V-A
Rated short-time withstand current lcw2.5kA
Rated permanent current at AC-23, 400 V-A
Rated operation power at AC-23, 400 V-kW
Conditioned rated short-circuit current Iq50kA
Number of auxiliary contacts as normally closed contact0
Motor drive optionalNo
Motor drive integratedNo
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
Suitable for front mounting centreNo
Device constructionComplete device in housing
Suitable for front mounting 4-holeNo
Suitable for distribution board installationYes
Suitable for intermediate mountingNo
InterlockableNo
Voltage release optionalNo
Type of electrical connection of main circuitScrew connection
With pre-assembled cablingNo
Suitable for floor mountingNo
Degree of protection (NEMA)Other
Colour control elementBlack
Height123mm
Type of control elementOther
Width70mm
Degree of protection (IP), front sideIP20
Depth74.6mm
Width in number of modular spacings-
Rated permanent current Iu100A
Number of poles3
Max. rated operation voltage Ue AC-V
